Well Bore Clean Up for Efficient Well Performance
Well Bore Clean Up is a critical process in oil and gas operations used to remove debris, sand, drilling fluids, and other unwanted materials from the wellbore. Proper Well Bore Clean Up ensures smooth production flow, protects downhole equipment, and enhances overall well efficiency.
How Well Bore Clean Up Works
Well Bore Clean Up involves various techniques such as circulating fluids, using specialized tools, and removing accumulated solids from the wellbore. This process helps restore well integrity and prepares the well for optimal production.
Key Features of Well Bore Clean Up
- Effective Well Bore Clean Up for debris and sand removal
- Use of advanced tools and techniques
- Suitable for different well conditions
- Improves wellbore integrity
- Ensures safe and efficient operations
Applications of Well Bore Clean Up
- Oil and gas wells
- Post-drilling and completion operations
- Well intervention services
- Workover operations
Benefits of Well Bore Clean Up
- Improves production efficiency
- Prevents equipment damage
- Reduces downtime and maintenance
- Enhances safety and reliability
- Extends well life
Wellbore Clean-up System

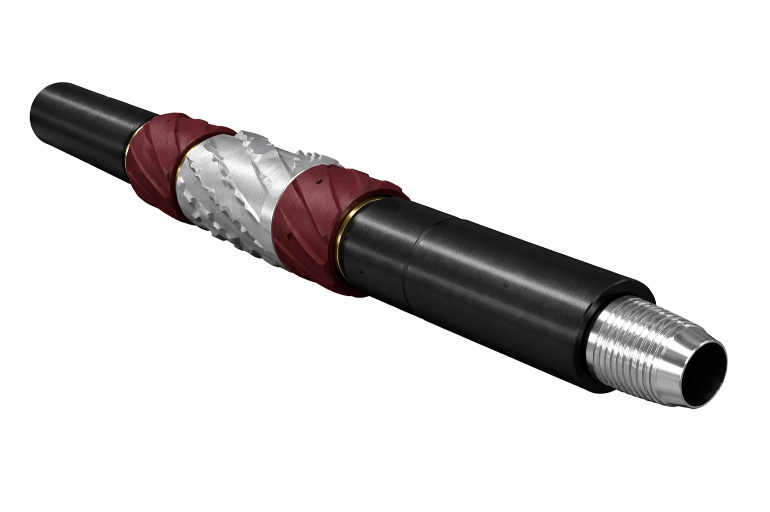

Non-Rotating Scraper
Non-Rotating Scraper milling tool is a robust, full 360° contact wellbore clean-up solution. It features a heavy-duty cement mill securely integrated with a single-piece mandrel. The tool can be deployed as a standalone unit or configured modularly as part of the Combo Wellbore Clean-Up System.
The tool is versatile and can be customized to suit a wide range of casing sizes and drill pipe combinations.
- Wellbore clean-up operations prior to completion to eliminate hardened cement sheath, scale, mud residues, cuttings, and other debris from the casing interior
- Commonly used alongside the ScourRdillo™ Casing Scraper to achieve enhanced hole cleaning performance
- Enables drilling of casing cement plugs in a single trip
- Suitable for extended reach wells requiring high-strength drill pipe connections
- Ideal for remote locations with limited logistics, where tool servicing can be carried out at the rig site
- Applicable for short tripping operations where multiple tools are run in the same string
- Heavy-duty, self-energizing single-piece scraper broach, precision-machined from a solid steel billet and designed with multiple rows of overlapping teeth
- The scraper broach flexes to match the casing ID while maintaining sufficient rigidity to deliver effective scraping force, ensuring complete 360° contact where conventional sprung pad scrapers fall short
- Dual fluted centralizer rings ensure proper centralization, allow fluid bypass, and protect the scraper broach
- Free-rotating design incorporating internal bearing rings to minimize wear on the drill pipe, tool, and casing
- Quick assembly and redressing can be carried out on-site using basic hand tools
- Designed without external bolts, clamps, or fasteners that could loosen downhole
- Durable construction featuring a robust assembly with multiple redundancy safeguards> Robust assembly design with multiple backup features for enhanced reliability
- Reduces overall operational costs through efficient wellbore clean-up, minimizing rig time and multiple runs
- Lower logistics, deck space, inspection, and maintenance costs as the system can be serviced at the rig site using basic hand tools
- Effective removal of fine debris prevents blockage of screens and pore throats, enhancing overall well performance
- High-strength mandrel design without internal connections ensures superior reliability and durability
- Compatibility with premium and high-torque connections eliminates the need for crossovers, maintaining string integrity
- Proven to minimize non-productive time during well completion through efficient clean-up operations
- Prevents premature failure of completion equipment by eliminating debris that could interfere with valves, electronics, and other critical components

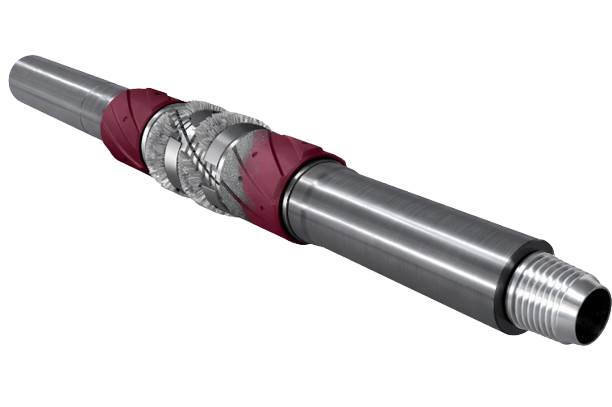

Casing Brush
The Casing Brush is a rugged and efficient wellbore clean-up solution engineered to provide complete 360° casing contact for superior cleaning performance. Designed for versatility, it can be run independently or as part of a modular Wellbore Clean-Up System.
Adaptable to a wide range of casing sizes and drill pipe combinations, the Casing Brush delivers reliable performance across diverse well conditions.
Suitable for pre-completion wellbore clean-up operations, effectively removing hardened cement sheath, scale, mud solids, cuttings, and other debris from the casing wall
Commonly run in combination with a casing scraper to achieve enhanced hole cleaning performance
Capable of drilling out casing cement plugs in a single trip, improving operational efficiency
Ideal for extended reach wells where high-strength drill pipe connections are required
Well-suited for remote locations with limited logistics, allowing maintenance to be performed at the rig site
Efficient for short tripping operations where multiple brush tools are run on the same string.
- Incorporates multiple overlapping wire brush elements to ensure full 360° contact with the casing wall, while allowing ample fluid bypass for effective circulation
- Equipped with two fluted centralizer rings that provide proper centralization, enable fluid bypass, and protect the brush elements
- Features a free-rotating design with internal bearing rings to minimize wear on the drill pipe, tool, and casing
- Designed for quick assembly and redressing at the rig site or support base using simple hand tools
- Eliminates the use of external bolts, clamps, or fasteners that could loosen or fall downhole
- Built with a robust assembly design incorporating multiple backup mechanisms for enhanced reliability
- The Wellbore Clean-Up System offers incremental savings in logistics, deck space, inspection, and maintenance
- Tools can be serviced at the rig site using basic hand tools, reducing operational costs and downtime
- Effective wellbore clean-up removes fine debris that can block screens and pore throats, thereby enhancing overall well productivity
- The system can be supplied with a wide range of rig-end connections, including premium and high-torque options, minimizing the need for reduced-strength crossovers
- Single-piece mandrel design without internal connections improves overall strength and structural integrity
- Efficient wellbore clean-up operations help minimize non-productive time during well completion
- Reduces the risk of premature failure of completion equipment by eliminating debris that can interfere with valves, electronics, and other critical components

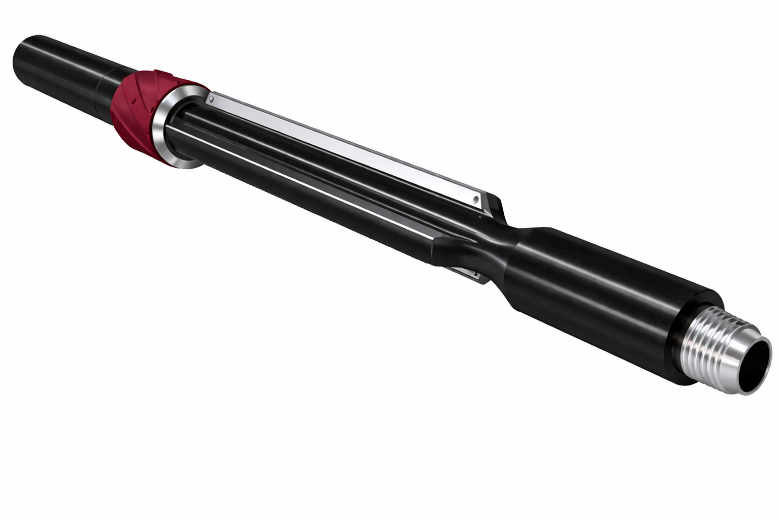

Casing Magnet
The Casing Magnet is a robust, high-strength, and high-capacity tool designed for efficient retrieval of ferrous debris from the wellbore. It features a free-rotating centralizer to enhance performance and reduce wear during operations. The tool can be run as a standalone unit or configured modularly as part of the Wellbore Clean-Up System.
Engineered for versatility, this Casing Magnet can be adapted to suit a wide range of casing sizes and drill pipe combinations.
- While tripping or circulating, the MAGStar4™ HD Casing Magnet captures ferrous debris present in the wellbore and retains it for removal at surface
- Can be included in the string during heavy-duty milling, fishing, and workover operations
- May be installed just below the wellhead during BOP jetting to collect any loosened ferrous debris
- During displacement, the drill string can be rotated and reciprocated to improve wellbore cleaning without risking damage or wear to the casing, drill pipe, or the MAGStar4™ HD Casing Magnet
- Equipped with three longitudinal ribs incorporating rows of high-strength, high-temperature-resistant rare earth magnets
- Provides excellent fluid bypass area along with high debris-carrying capacity
- Ensures secure retention of captured debris for effective retrieval at the surface
- Designed with a single-piece mandrel for enhanced strength in heavy-duty and high-torque applications
- Optional non-rotating centralizer reduces wear on the casing and tool while improving magnet performance
- Magnets are firmly secured within integral slots, supported by multiple backup retention mechanisms for maximum reliability
- Allows easy cleaning at the surface for quick re-deployment into the well
- Eliminates the use of external bolts, clamps, or fasteners that could loosen or fall downhole
- The high-density magnet configuration reduces the number of tools and trips required for wellbore clean-up during intensive milling operations
- Effective wellbore clean-up eliminates ferrous debris that could block screens or disrupt sensitive completion equipment, improving overall performance
- Solid, high-strength mandrel design without internal connections enhances durability and reliability
- Can be supplied with a variety of proprietary high-strength connections, removing the need for crossovers that may weaken the string
