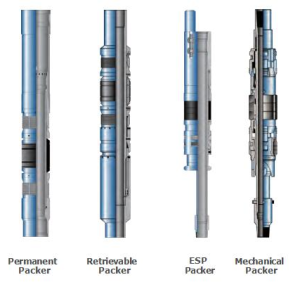

Down hole Packers

Annular casing packer



The Annulus Casing Packer (ACP) is an inflatable packer assembly designed to be installed as part of a casing string or liner and inflated in either cased or open-hole sections of the well. Its primary function is to Prevent gas migration, reduce the gas-to-oil production ratio, reduce or prevent water production. Isolate production or injection zones.

 Once inflated, the ACP creates a reliable, impermeable annular barrier, helping to isolate zones and maintain well integrity.

The tool is suitable for vertical, highly deviated, and horizontal wells, making it a versatile solution for a wide range of well completion and zonal isolation applications.

Datasheet

Type

O.D (in)

I.D (mm)

Length (mm)

Seal Length (mm)

Work Size (in)

Thread

4

5.24

89

113

>37.5

5.83 – 8.86

4 API Thread

4 ½”

5.75

97

109

>37.5

6.30 – 8.86

4 1/2 API Thread

5

6

108

118

>37.5

6.12 – 9.50

5 API Thread

5 ½” – I

7.00

122

122

>37.5

7.87 – 10.63

5 1/2 API Thread

5 1/2” – II

7.48

122

122

>37.5

8.27 – 12.36

5 1/2 API Thread

7

8.27

159

125

>37.5

8.66 – 12.60

7 API Thread

9 5/8”

11.26

220

127

>37.5

11.93 – 15.60

9 5/8 API Thread
