Jiach Energy Solutions Introduces SageRider Inc, a Reservoir group Company
Downhole pressure and temperature gauges are deployed using various conveyance methods based on well conditions, completion design, and operational objectives, ensuring accurate data acquisition for effective reservoir monitoring and production optimization. The four primary deployment methods are
- Tubing Conveyed gauges
- Casing Conveyed gauges
- Thru-Tubing gauges
- Wireless gauges
Tubing
Conveyed Gauges
Our Tubing Conveyed Gauges are permanently installed as part
of the production tubing string to provide continuous downhole pressure and
temperature monitoring. Designed for long-term reservoir surveillance, they
deliver accurate real-time or memory data throughout the well’s production
life. These gauges are ideal for optimizing production performance, monitoring
reservoir behaviour, and supporting effective field management decisions.
Key Benefits
- Installed below standard artificial lift completions.
- Utilizes real-time pressure and temperature gauges.
- Fully retrievable and reusable.

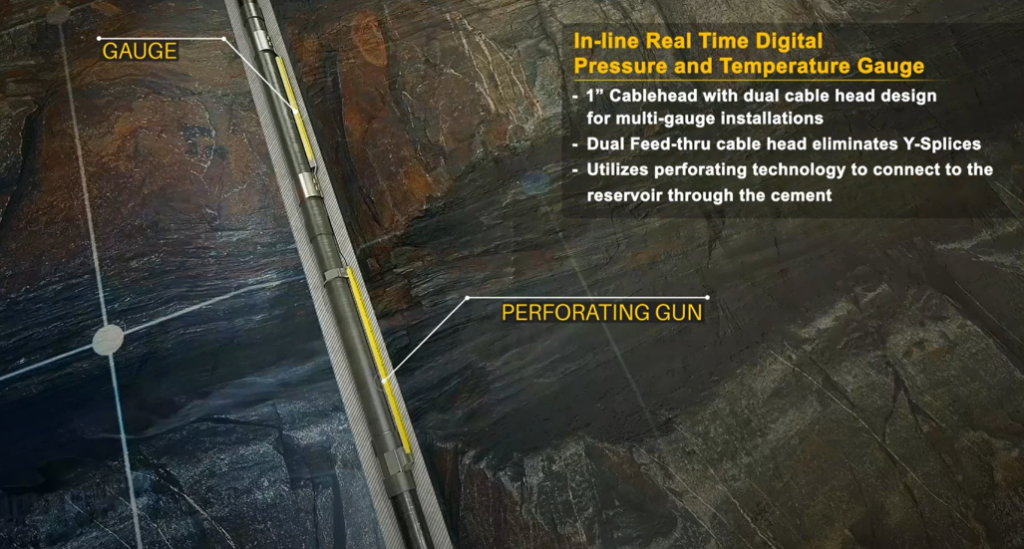

Casing Conveyed gauges
Our Casing Conveyed Gauges are installed along the casing string to monitor downhole pressure and temperature, typically in the annulus or reservoir zone. Designed for long-term surveillance, they provide reliable data for reservoir evaluation, injection monitoring, and integrity assessment. Their placement on casing allows continuous monitoring without interfering with production operations.
Key Benefits
- Installed outside the casing in both cemented and non-cemented applications.
- Utilizes real time pressure & temperature and fibre optics technology.
- Simultaneous Monitoring of unlimited points within a single wellbore.

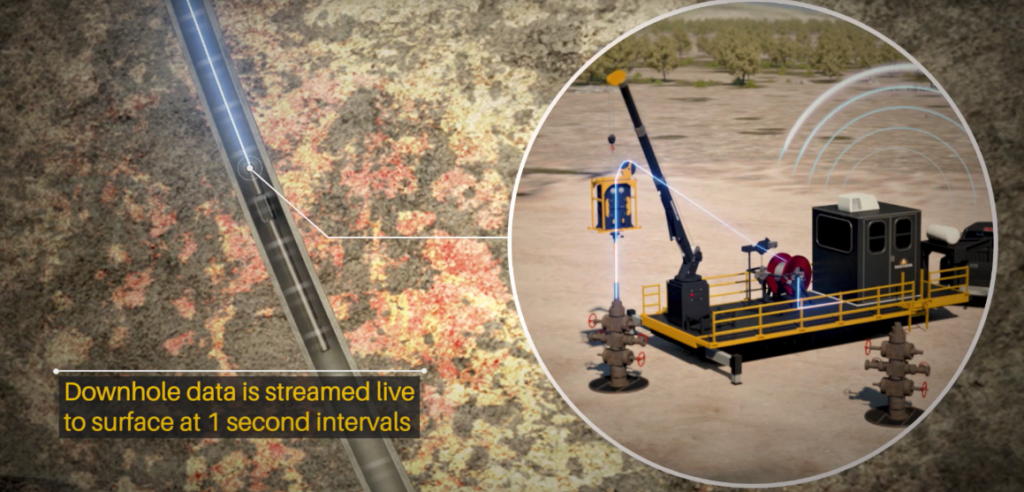

Thru-Tubing Gauge System
Our Thru-Tubing Gauge Systems are slim-profile downhole monitoring tools designed for deployment through existing production tubing without requiring major well intervention. Ideal for temporary surveys and well diagnostics, they provide accurate pressure and temperature data in live wells. Their compact design enables cost-effective, flexible deployment while maintaining normal production operations.
Key Benefits
• Install real time bottom hole pressure & temperature gauges and Fiber optics technology under pressure.
• Fully retrievable and re-usable.
• Used in conjunction with standard completion methods.

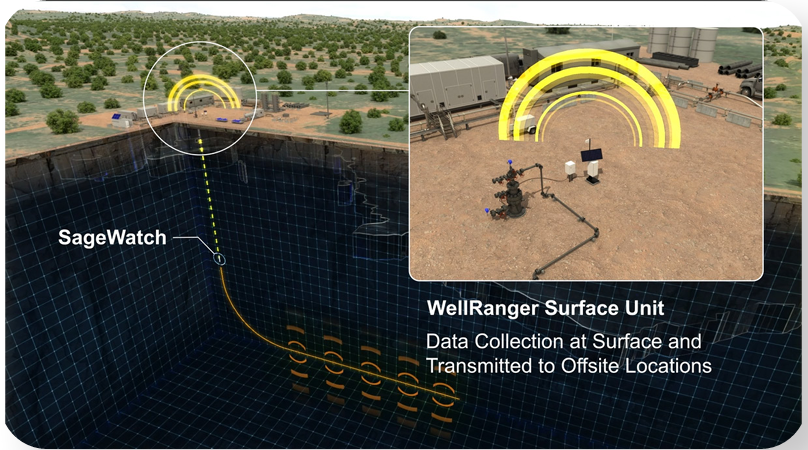

Wireless Gauges
The ResLink wireless real-time telemetry platform is designed to facilitate wireless well monitoring in both short and long-term deployments. The platform employs EM (Electro-Magnetic) waves to transmit data through the ground from any location within a well, including from within Casings & Completions equipment.
In Pump-Off Control applications the gauge sits below the PCP. For other applications, ResLink is deployable on Casing, Tubing, Coil Tubing, Wireline, or Slickline, and can be retrofitted or integrated as part of your Completion. Multiple systems can be installed within the same wellbore.
The gauge comes factory-sealed and pre-configured to turn on only once a pre-defined pressure is detected, making it incredibly easy to transport and install on site without the need for additional assembly.
Data transmission can be programmed to respond intelligently to downhole events, such as changes in pressure. On the surface, the data logger can be easily configured to capture and output the data you require and can be seamlessly integrated with third-party data gathering systems.
Surface telemetry card with LCD
