Low Maintenance Lift
High Volume production
The operation to kick-off a well using a Jet Pump is an extremely effective technique for reviving wells that are either dead or not producing. This approach is especially beneficial in the oil and gas sector, where quick and efficient solutions are often necessary to bring wells back to full productivity.
No Moving Parts
Rig less Intervention

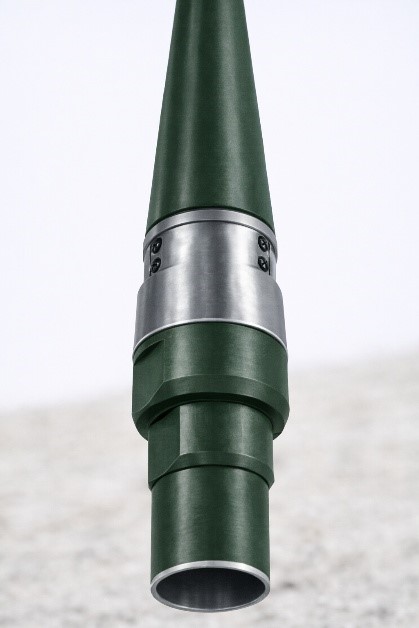

Jet pumps
feature a compact and durable design with no moving parts, significantly
reducing the risk of equipment failure, even in the most challenging wellbore
conditions. The system can be deployed without a rig, as the pump is installed
downhole and can be retrieved by circulating power fluid to move it up the
wellbore. Once installed, jet pumps operate reliably with minimal operational
intervention and require virtually no maintenance.
Jiach Energy Solutions, in collaboration with
Global Petroleum Technologies, brings a long-standing legacy of innovation and
expertise in jet-pump lifting systems. Through comprehensive well evaluation
and the careful selecti
Jiach Energy Solutions, in collaboration with Global Petroleum Technologies, brings a long-standing legacy of innovation and expertise in jet-pump lifting systems. Through comprehensive well evaluation and the careful selection of completion design and power fluid, our in-house engineering team develops optimized solutions tailored to each well’s requirements.
Today, Jiach Energy Solutions delivers robust and comprehensive jet-lift solutions, including multi-well configurations operating with a single pump, versatile surface equipment, and reliable technical support. Our integrated approach ensures efficient performance, operational flexibility, and enhanced production across a wide range of well conditions.

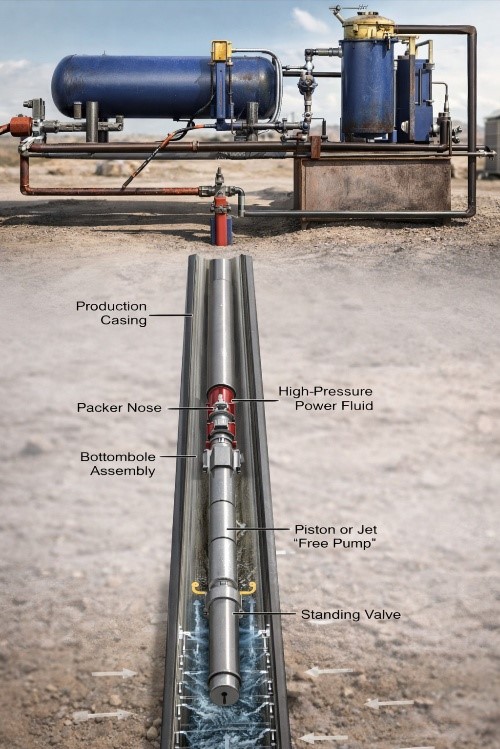

Working of Jet Pump
In a jet-pump lifting system, the pump is deployed downhole without the need for a rig. At the surface, a power-fluid system utilizes plunger or a multiplex pump to pressurize and inject power fluid into the wellbore. This high-pressure fluid travels downhole to the jet pump nozzle, resulting in Venturi effect, creating a low-pressure zone. This low pressure draws reservoir fluids into the pump throat, where the power fluid and produced fluids mix. The mixed power fluid is lifted to the surface.
Benefits of Jet Pump
Engineered Designs for your needs
High Solids Tolerance
The Best in Corrosion Resistance.
Minimal Maintenance
Consistent Uptime
Seamless Transition to Other Lift Systems
Economic Longevity.

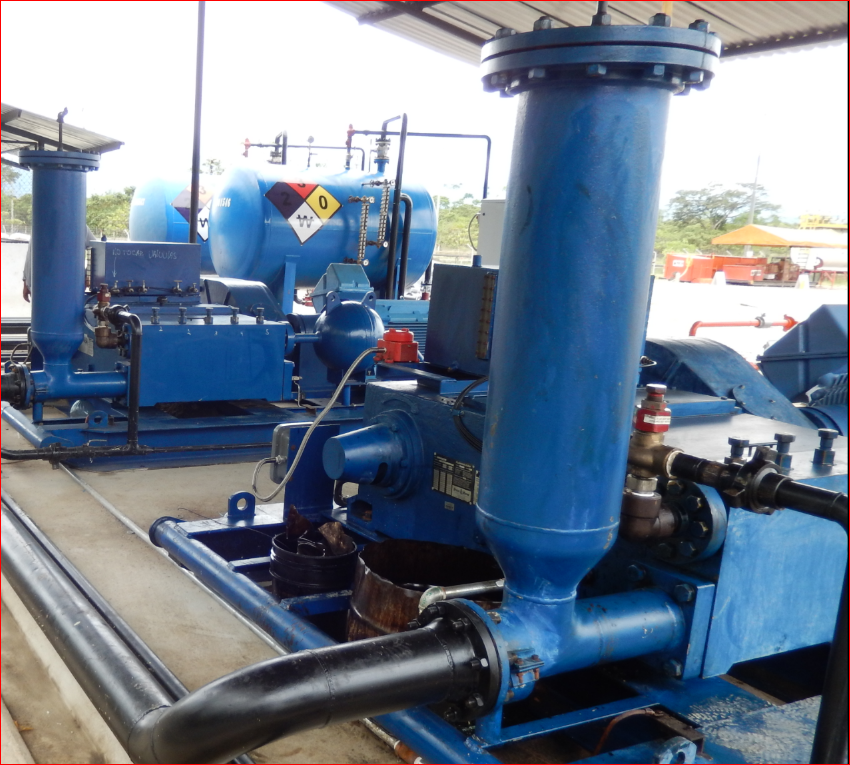

Surface Equipment
Jet Pumps and Hydraulic Plunger Pumps utilize a shared surface power-fluid system that can operate multiple wells from a single unit or be arranged for dedicated operation on individual wells. The system filters, treats, and pressurizes reservoir fluid to drive the jet pump effectively.

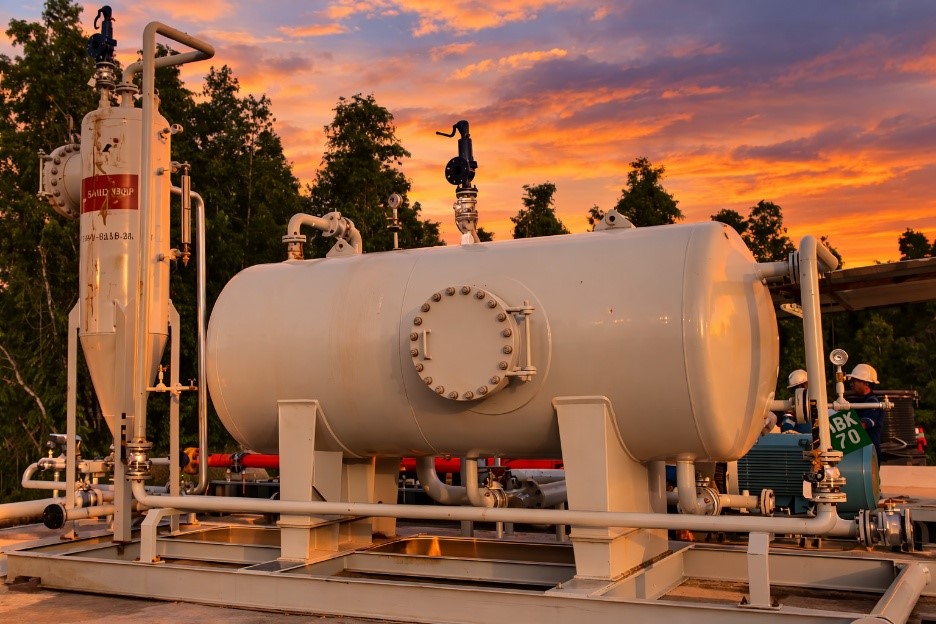

Our plunger pumps are available in power ratings ranging from 50 to 400 HP, powered by electric motors or mechanical drives. A three-phase separation unit processes the produced fluids by separating oil, gas, and water, allowing the conditioned power fluid to be reused in the system.
All pumps and pressure vessels are constructed from corrosion-resistant materials, providing dependable operation, extended equipment life, and suitability for harsh oilfield conditions.

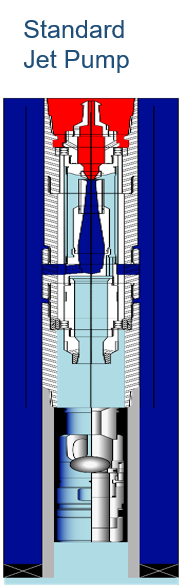

Downhole Jet pump
A Straddle Jet Pump Solutions
GPT provides two efficient solutions to straddle a jet pump: Rigless Installation and Through-Tubing Deployment. These solutions are designed to improve operational flexibility while minimizing intervention costs and downtime.
The Fixed Reverse Flow Straddle Jet Pump features larger internal flow passages, enabling higher production rates and improved lifting capacity. This design is particularly suitable for wells requiring enhanced flow performance and efficient artificial lift operations.

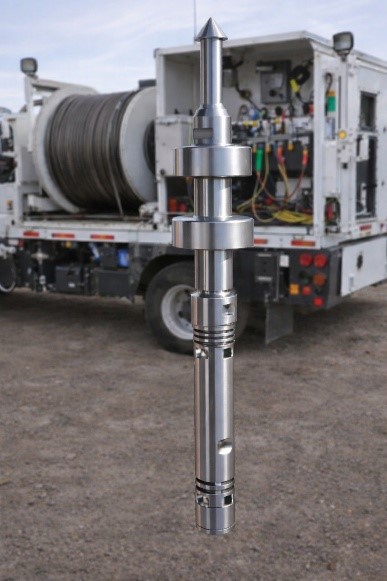

The Coiled Tubing Jet Pump offers a recoverable jet pump solution with outer diameters of 1¼” or 1½”, allowing the pump to be retrieved without pulling the entire straddle pack-off assembly. This significantly reduces intervention time and operational costs. However, this system operates with direct fluid circulation only.The Coiled Tubing Jet Pump also incorporates the High-Volume Concept, where the Bottom Hole Assembly (BHA) is designed with larger internal flow passages to maximize inflow capacity and improve overall production performance.
Both jet pump models are manufactured using high-grade alloy corrosion-resistant materials and are coated with Diamond-Like Carbon (DLC). This advanced coating provides exceptional corrosion protection, superior erosion resistance with hardness exceeding that of diamond, and reduced internal friction by lowering the Reynolds value. These features ensure maximum durability, efficiency, and reliability, making these jet pump systems best in their class.
Jet Pump Capacity
Tubing Size | Type of Pump | Production Rate |
1¼” | 1 ¼” High Vol | 500 BPD |
1 ½” | 1 ½” High Vol | 1000 BPD |
2 3/8” | 2” STD | 1500 BPD |
2 3/8” | 2” High Vol | 3000 BPD |
2 7/8” | 2 ½” STD | 2500 BPD |
2 7/8” | 2 ½” High Vol | 6000 BPD |
3” | 3” STD | 10,000 BPD |
3” | 3” High Vol | 20,000 BPD |
Parameter Specification
Operating Depth | 1100 to 5000 M |
Operating temperature | 50 to 400 deg C |
Total Volume | 500 to 20000 BPD |
