Electronic Rig Monitoring System

Jiach Energy Solutions have Partnered with Bohr Instrument Services B.V. (Veenoord, The Netherlands) and Matherne Instrumentation, USA to provide Drilling Instrumentation for India Drilling /Workover Rigs.

Rig Instrumentation Server will collect data from Advance Instrumentation system(AIS), Mudlogging , M/LWD, Cementing Unit, Engines and Transmit the data in WITSML format.

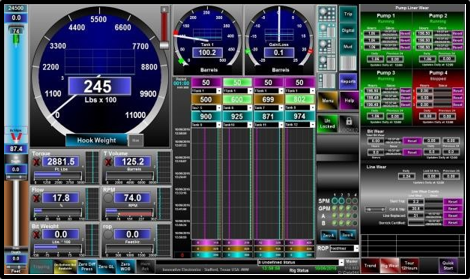

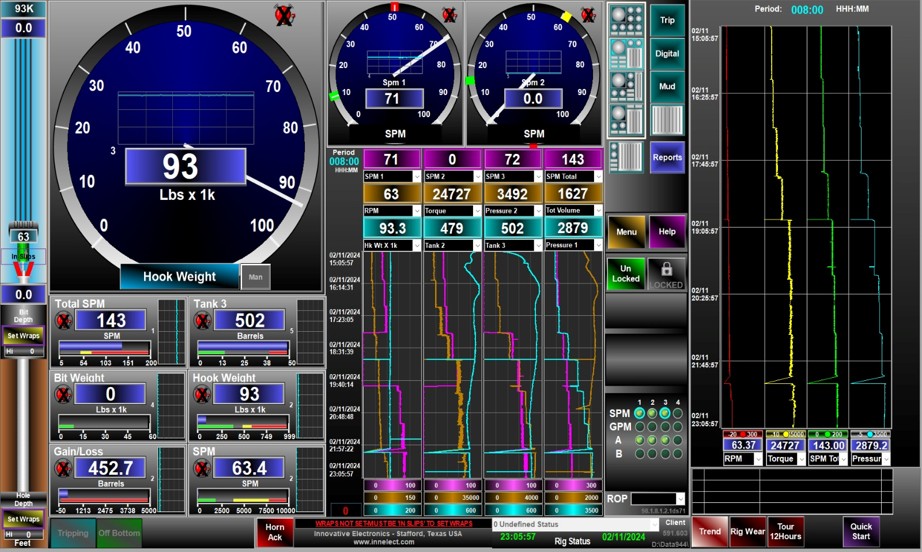

Drillers HMI Touchscreen will enable Driller to configure drilling Data, enabling to reduce NPT and better Efficiency.

  • Electronic Rig Monitoring Systems
    • DRILL-PRO “Total Drilling Information Systems” by BOHR
    • I-View® Rig Monitoring & Reporting, F.I.R.M.S.® Modular Component by MATHERNEIS
  • Data Acquisition Sensors for
    • Pressure Transducers for HookLoad,Pump Pressure, Casing Pressure
    • Encoders for Hole Depth, Bit Depth, Ton Mile
    • Proximity Sensors for RPM/SPM
    • Ultrasonic/Radar Sensors for Mud Pit /Trip Tank Level Monitoring
    • Mud Density / Temperature /Conductivity sensors
    • Return Flow Sensor
  • GAS-PRO “Total-gas Detection Systems” Online Monitoring with Gas Trap, Filter Unit
    • Total Gas 0-100% Volume in Air
    • H2S 0-20% PPM by Volume in Air
  • Crown-O-Matic Floor-O-Matic (Crown Saver)
    • Electronic Crown Protector I-Stop Model
    • Kinetic Energy Monitoring System (KEMS)
    • Block Control System
  • Barge Instrumentation Monitoring System
    • Pre-Load Tanks
    • Jacking System
    • Hull Draft and Air Gap
    • Engine Monitoring
  • Electronic Ton Mile Systems
  • Pump Stroke Counters (For 2 and 3 Mud Pumps)
  • RPM/SPM Tachometer Systems
  • Electronic Pressure Gauges (E-Gauges)
  • Choke Control Monitoring System
  • Silo Weight Monitoring System
  • MODBUS To WITSML (1.3.1 / 1.4.1) Converter
  • WITS 0 To WITSML (1.3.1 / 1.4.1) Converter
MATHERNEIS

Established in 1999, Matherne Instrumentation is a global, one-source solution for all your oilfield instrumentation and custom machining in the oil and gas industry.

Visit Website
BOHR

Bohr Instrument Services B.V. (Veenoord, The Netherlands) established in 1985, provides a wide range of services to the oil and gas industry. Repair, calibration and certification services of pressure recorders and gauges , installation and maintenance of drilling instrumentation, and other drilling instrumentation used in the gas and oil industry.

Visit Website
