JES Plunger Lift Controller
PREMIUM TIMER/PRESSURE OPTIMIZATION SOLUTION
The JiaCH ENERGY Plunger lift Controller (JE-PLC) represents the next generation in plunger lift automation. Designed for ease of use, optimal performance, and seamless data integration — even without SCADA — the JPLC delivers smart, reliable well optimization in the most challenging oilfield environments.
JES plunger lift controller (JE-PLC) is a device used to manage the movement of a plunger. It optimizes the timing and efficiency of plunger cycles, maximizing gas or oil production while minimizing operational costs.
- Wells operating without SCADA
- Remote or hazardous areas
- Single to triple valve plunger lift systems
- Onshore oil & gas fields
Environments with wide temperature fluctuations
- Smart Optimization Algorithms: Advanced logic including Time, TP, CP, Load Factor, for real-time flow-based optimization.
- Remote Access: Operate, monitor, and download data via any mobile device or laptop. No need to open the cabinet or be on-site.
- Cloud-Enabled Storage: All data is stored on the device and syncs to the cloud upon internet connection —

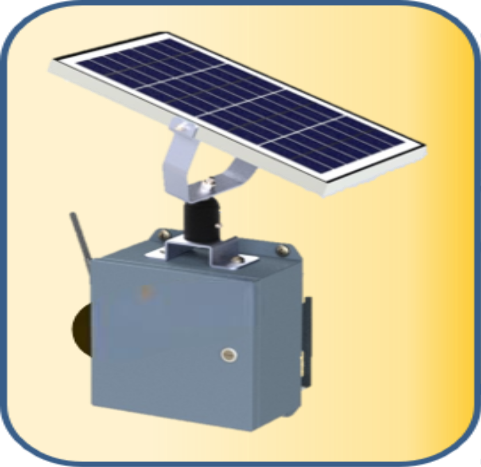

accessible globally. - Solar-Powered Autonomy: Operates for 8+ months on a single solar charge with minimal maintenance.
- Durable Housing: IP-rated, water-tight steel enclosure with a secure locking system.
- User-Centric UI: Full graphical interface accessible from mobile or tablet, supporting setup, troubleshooting,
and visualization. - Plug-and-Play Installation: Compatible with any plunger system brand and common sensors.
Specification | Details |
Model | JE-PLC Plunger lift Controller |
Part Number | JE-101 |
Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
Power Supply | 6V Solar Panel (1.1W), 8Ah Battery |
Number of Valves Supported | Up to 5 |
Input Support | Line Pressure Switch / Arrival Sensor |
Travel history | 25 Plunger Cycles |
Communication Protocol | Dual RS-485 (Modbus) |
Certification | Class 1, Zone 0, Ex/AEx ia (ia) IIB |
Connectivity | Cloud + Offline Storage, USB Download |
Interface | Mobile/Tablet/Web UI |
Note:
- The JE-PLC is designed for seamless field integration and supports future firmware upgrades over USB or cloud sync.
- Ensure proper grounding and certified installation for hazardous locations.
- JiACH ENERGY offers technical training and after-sales support for commissioning and operations.
- Customizations for specific well configurations are available upon request.
MODEL NAME: JE-PLC, MODEL No.: JE-101
