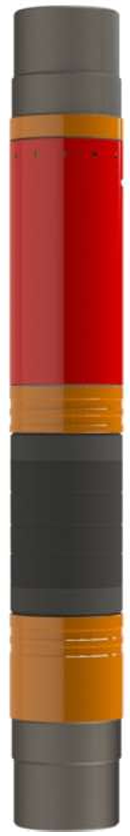

Annular casing packer
The Annulus Casing Packer (ACP) is an inflatable packer assembly designed to be installed as part of a casing string or liner and inflated in either cased or open-hole sections of the well. It’s primary function is to Prevent gas migration, reduce the gas-to-oil production ratio, reduce or prevent water production. Isolate production or injection zones.
Once inflated, the ACP creates a reliable, impermeable annular barrier, helping to isolate zones and maintain well integrity.
The tool is suitable for vertical, highly deviated, and horizontal wells, making it a versatile solution for a wide range of well completion and zonal isolation applications.
|
Type |
O.D (in) |
I.D (mm) |
Length (mm) |
Seal Length (mm) |
Work Size (in) |
Thread |
|
4 |
5.24 |
89 |
113 |
>37.5 |
5.83 – 8.86 |
4 API Thread |
|
4 1/2 |
5.75 |
97 |
109 |
>37.5 |
6.30 – 8.86 |
4 1/2 API Thread |
|
5 |
6 |
108 |
118 |
>37.5 |
6.12 – 9.50 |
5 API Thread |
|
5 1/2 – I |
7.00 |
122 |
122 |
>37.5 |
7.87 – 10.63 |
5 1/2 API Thread |
|
5 1/2 – II |
7.48 |
122 |
122 |
>37.5 |
8.27 – 12.36 |
5 1/2 API Thread |
|
7 |
8.27 |
159 |
125 |
>37.5 |
8.66 – 12.60 |
7 API Thread |
|
9 5/8 |
11.26 |
220 |
127 |
>37.5 |
11.93 – 15.60 |
9 5/8 API Thread |
Jiach Energy Solutions is India Local Partner for Star Petrotech Pte. Ltd, Singapore who Manufactures Downhole Completion Tools.

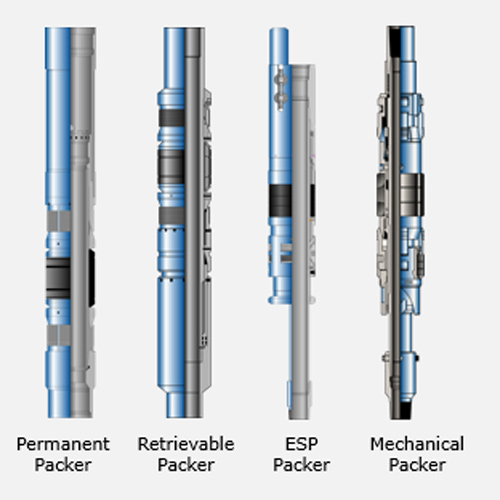

Type：
- Permanent series Packer
- Retrievable series Packer
- Dual String series Packer
- Mechanical series Packer
Engineering Data：
- Working Pressure : 3~15Kpsi
- Temperature : 20~400deg.F
- Casing Size: 4-1/2”~10-3/4“
- Certified with API 11D1, V0
